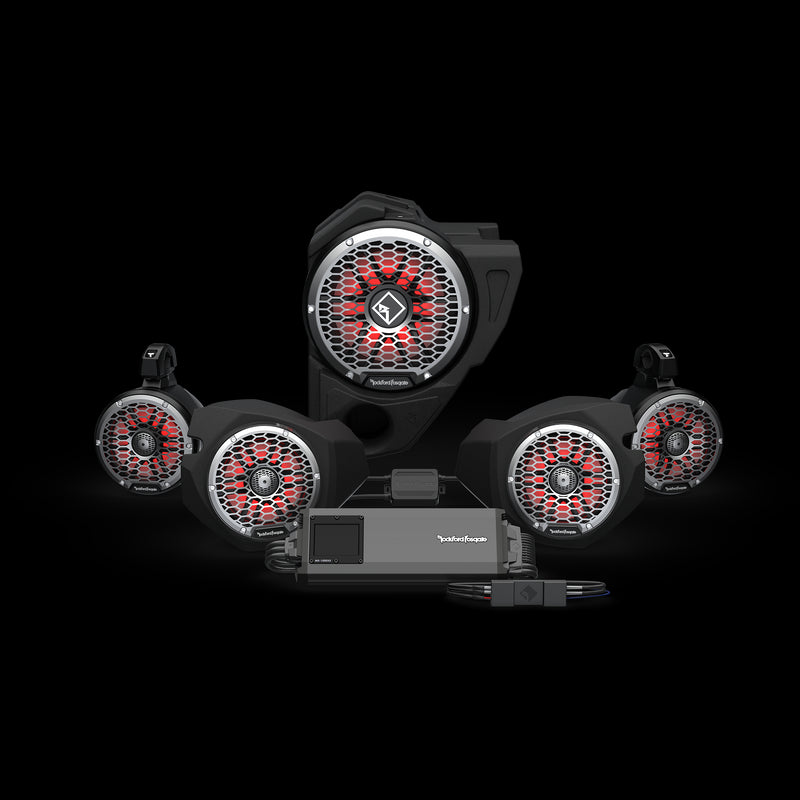

2014+ RZR-RC Audio Kit Color Optix Gen3 (Stage 5)

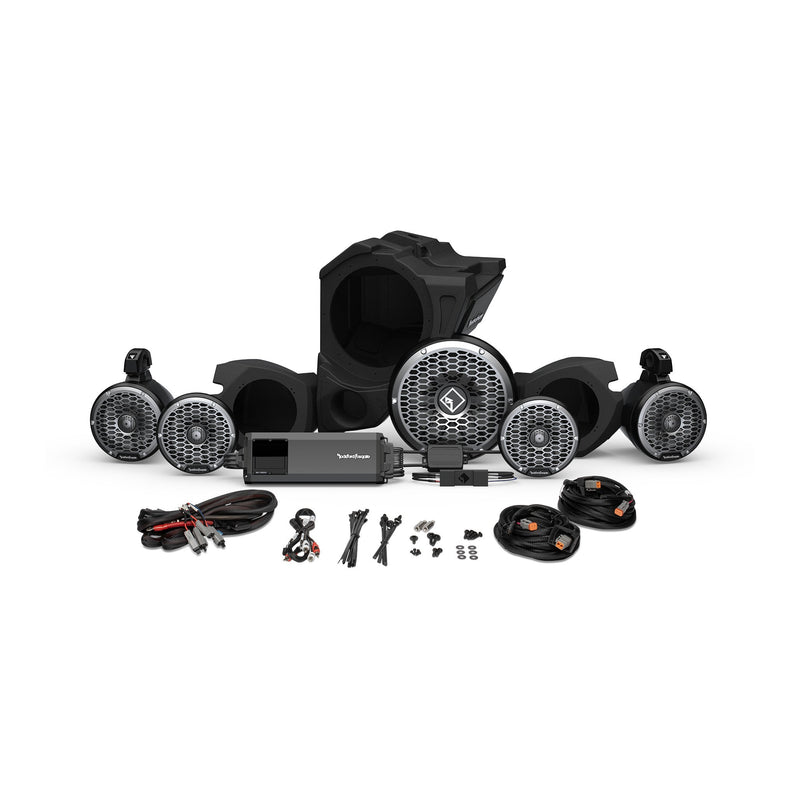

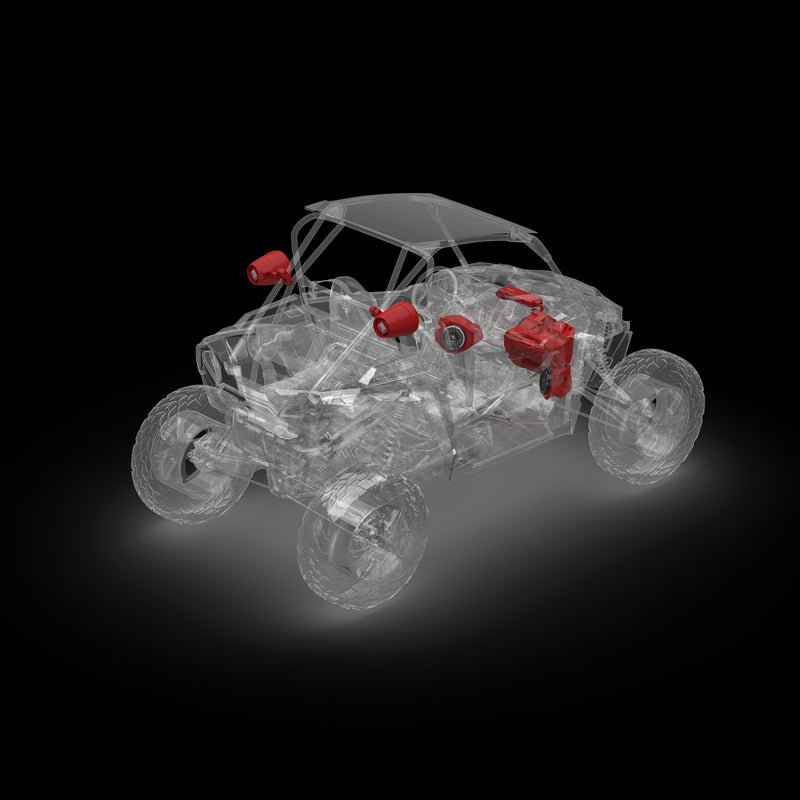

Our Gen-3 Stage 5 for Ride Command® provides all the features or our standard Stage 5 kit while using Ride Command® as your source unit. System allows you to add front and rear Color Optix™ speakers and a subwoofer on select RZR models. Kit is equipped with a Ride Command interface, front speaker enclosures, M2 6.5" Color Optix™ speakers, 1,500-watt Element Ready™ amplifier, front subwoofer enclosure, M2 10" Color Optix™ subwoofer, 4-gauge wiring harness, M2 6.5" Color Optix™ moto-cans with harness, and a Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Download RF Connect™ to control the PMX-RGB:
- Color Optix™ enabled
- Complete Element Ready™ audio system
- Easy setup of audio system: amplifier preset for maximum performance without tuning
- No drilling or cutting required
- Plug-n-Play wiring harnesses for RZR models
- Enclosures for speakers and/or subwoofer integrate with no loss of passenger/cargo space
- RFPOL-RC5: 3-way active noise reduction adaptor for Polaris® Ride Command®
- RZR14-FSE: Direct Fit Front Color Optix™ 6.5" Loaded Speaker Enclosures for select Polaris® RZR® Models
- M2-65B: M2 6.5” Color Optix™ Marine 2-Way Speakers - Black
- M5-1500X5: 1500 Watt 5-Channel Element Ready™ Amplifier
- RZR14-FWE: Direct Fit Front Color Optix™ 10" Vented Loaded Subwoofer Enclosure for select Polaris® RZR® Models
- M2D4-10IB: M2 10" DVC 4Ω Color Optix™ Infinite Baffle Marine Subwoofer - Black
- RZR14-K4: 4 AWG Amp Installation Kit for select Polaris® RZR® Models
- M2WL-65MB: M2 6.5" Element Ready™ Color Optix™ Moto Can Speaker - Black
- MX-RSW16: Rear Color Optix™ Speaker Add-On Harness for Select UTV Models
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface
LEGEND
YES✔ | NO✕ | NOT AVAILABLE— |
|---|
COMPATIBLE MODELS
YES  RZR (2-SEAT) | YES RZR (4-SEAT) | NO RZR Pro XP (2-SEAT) | NO RZR Pro XP (4-SEAT) |
|---|
RZR PRO XP
MODEL |  2014 | 2015 | 2016 | 2017 | 2018 | 2019 |  2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR PRO XP | — | — | — | — | — | — | ✕4 | ✕4 |
| RZR PRO XP Premium | — | — | — | — | — | — | ✕4 | ✕4 |
| RZR PRO XP Ultimate | — | — | — | — | — | — | ✕4 | ✕4 |
| RZR PRO XP 4 | — | — | — | — | — | — | ✕4 | ✕4 |
| RZR PRO XP 4 Premium | — | — | — | — | — | — | ✕4 | ✕4 |
| RZR PRO XP 4 Ultimate | — | — | — | — | — | — | ✕4 | ✕4 |
RZR (2-SEAT)
MODEL |  2014 | 2015 | 2016 | 2017 | 2018 |   2019 | 2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 900 XC 1,2 | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 2 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — |
| RZR S 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S 1000 1,2 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 Trails and Rocks 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
RZR (4-SEAT)
MODEL | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 4 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
RZR (1-SEAT)
MODEL |  2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR RS1 | — | — | — | — | — | — | — | — |
1 2014-2018 models compatible only with lower pocket assembly supplied with dash kit. Uses larger amp bracket supplied with amp mounting kit.
2 Kits featuring subwoofer not compatible with Polaris® heater option (located where sub enclosure should fit)
3 The 2 seat Turbo S shipped in early 2018, the 4 seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
4 The RZR PRO XP shipped in 2020 featuring a different chassis and body panels, therefore it is not compatible.
