Rockford Fosgate  CAN-AM, POLARIS, HONDA, TRACKER, YAMAHA / UNIVERSAL

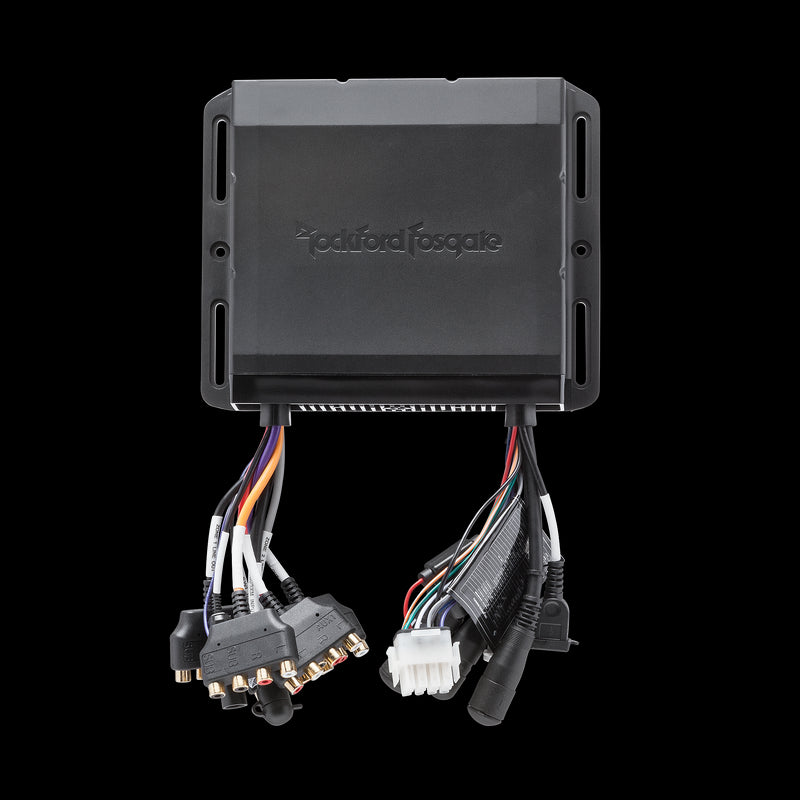

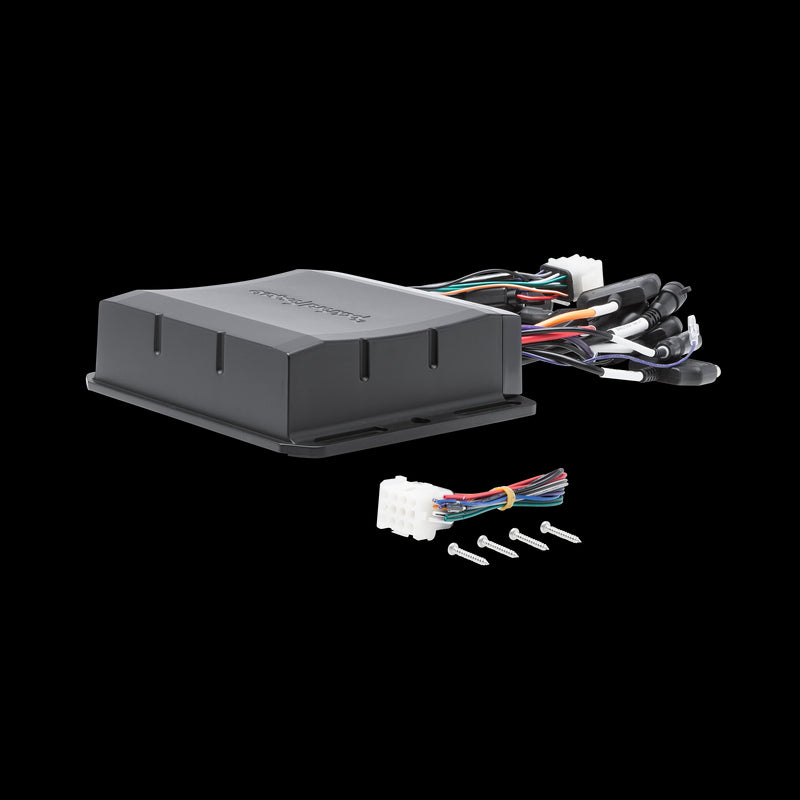

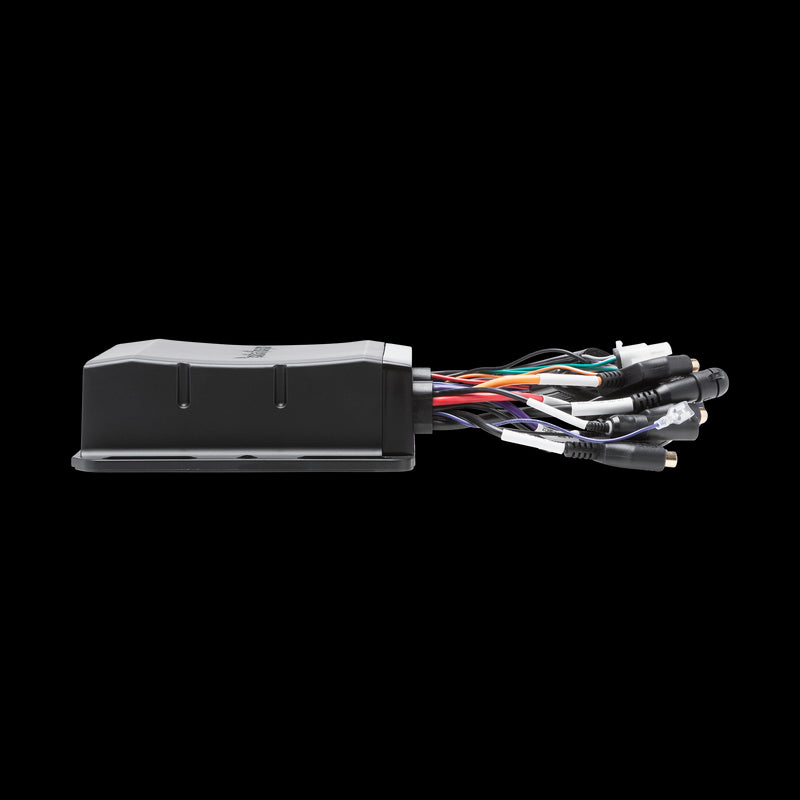

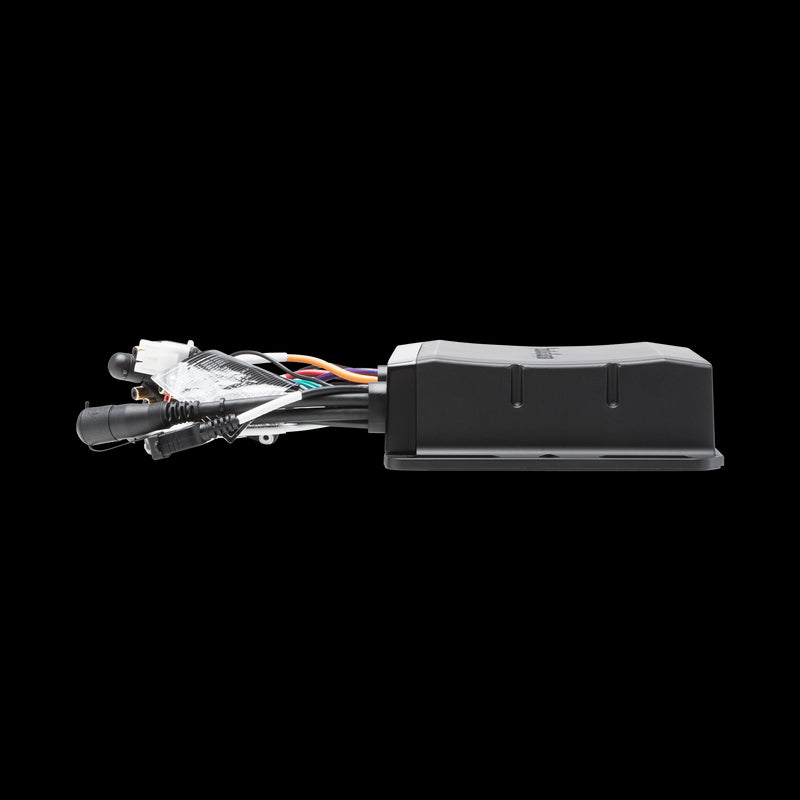

Punch Marine Hide-Away AM/FM/WP Digital Media Receiver

TYPE: Audio     SKU: PMX-8BB
The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN. (read more)
$549.99
$549.99
Product Customization
ADD ON's (Select Multiple)
DESCRIPTION
Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready.  Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)
FEATURES
  • Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
  • Bluetooth, A2DP only, AVRCP 1.4
  • Made for iPhone apple certified
  • Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
  • Simple secure pairing bluetooth profile for android & iOS
  • Display album art from connected iPhones on the radios display
  • 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
  • Folder browsing via BT connected iPhones
  • Internal power amplifier 4x50w 2 ohm stable
  • Selectable crossover slopes of 12dB or 24 dB for each independant zone
  • Selectable high pass and low pass crossover points for each independent zone
  • Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
  • Adjustable input gain for each source
  • Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Rear aux-in (L/R)
  • External steering wheel remote control interface compatible
  • External trigger input to activate reverse camera mode
  • Wired illumination control
  • Optional CAN-BUS transceiver ready (PMX-CAN)
  • Rear USB with 1a charging (supports album art on USB connected iPhones)
  • Epoxy coated circuit board
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
  • CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
  • Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
  • *Antenna not included
  • 2-Year Warranty

PRODUCT FITMENT GUIDE

( Click to expand fitment guide )
MODELDESCRIPTION

PMX-8DH 1,2

Punch Marine Full Function Wired 5" TFT Display Head

PMX-1R 1

Punch Marine Full Function Wired Remote 2.7" Display

PMX-0R 1

Punch Marine Wired Remote Control

1 The PMX-8BB is compatible with (1) PMX-8DH and combination of (3) PMX-1R and/or PMX-0R remotes, 100 ft Total Wired Distance

2 25-ft. max cable to PMX-8BB. When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH is supplied with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.
