CAN-AM, POLARIS, HONDA, TRACKER, YAMAHA / UNIVERSAL

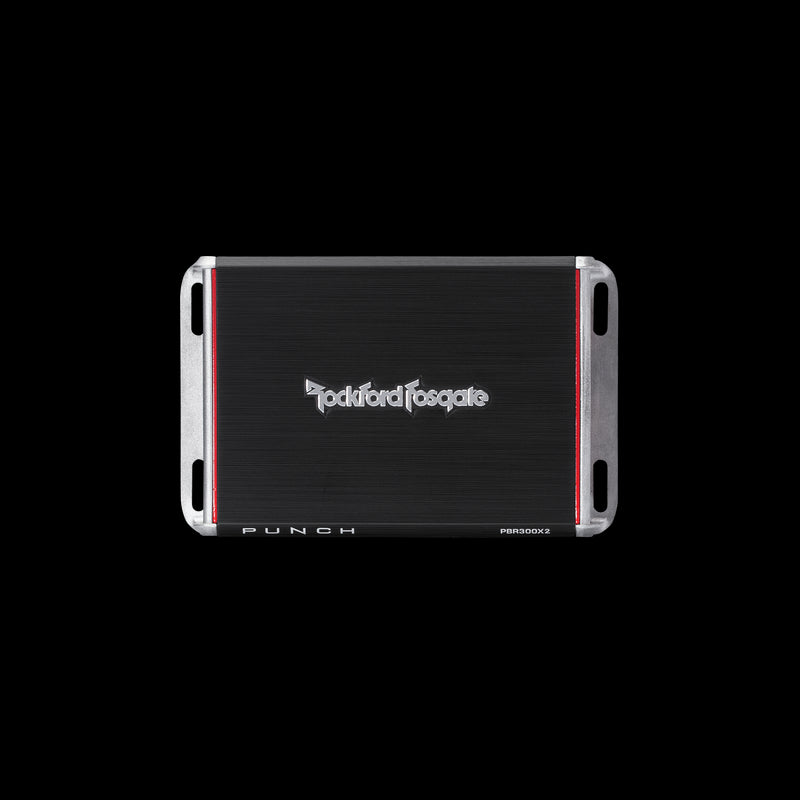

300W 2-Channel Boosted Rail Amplifier

TYPE: Audio     SKU: PBR300X2
The PBR300X2 is a 300 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles. (read more)
Regular price $249.99
Regular price Sale price $249.99
DESCRIPTION
The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. It is great for smaller stealth installations, as well as for motorcycles and recreational vehicles.
FEATURES
  • Ultra compact chassis
  • High level inputs
  • MOSFET output stage
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • 12dB/octave Butterworth crossover
  • 1 Year Warranty
PRODUCT FITMENT GUIDE
    • Please consult your amplifier owner's manual for lowest recommended impedance.

      The below diagrams optimize this amp for its lowest recommended BRIDGED/MONO load.





      Wiring Diagram #1





      Wiring Diagram #2





      Wiring Diagram #3







      Wiring Diagram #4



      Wiring Diagram #5




      Wiring Diagram #6




      Wiring Diagram #7




      Wiring Diagram #8






      Wiring Diagram #9






      Wiring Diagram #10
