Ranger 1500 XD FOX Shock Set - OEM Upgrade

TYPE: Suspension     SKU: TF230001
Regular price $2,999.95
Regular price Sale price $2,999.95

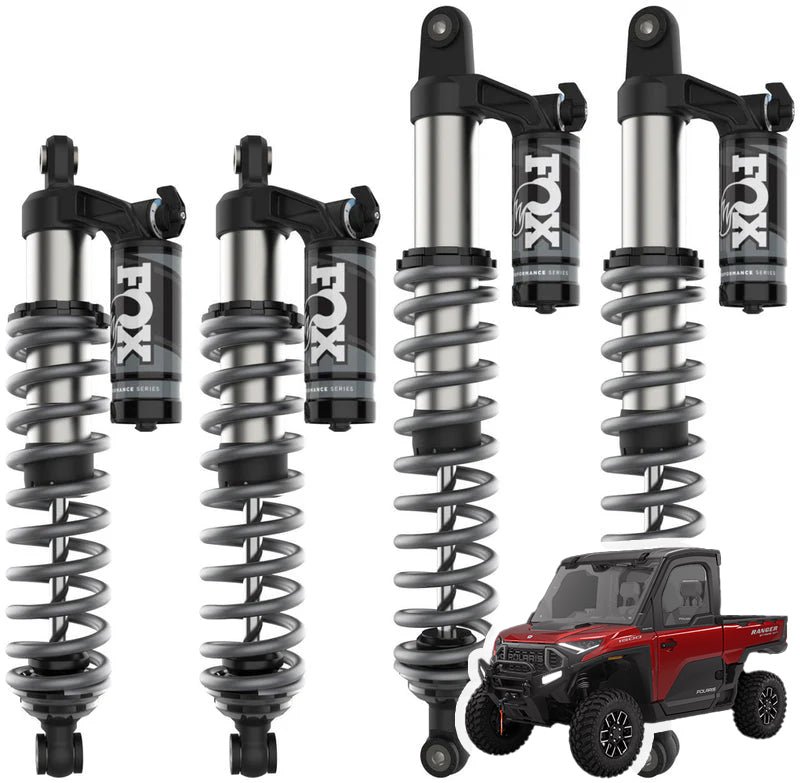

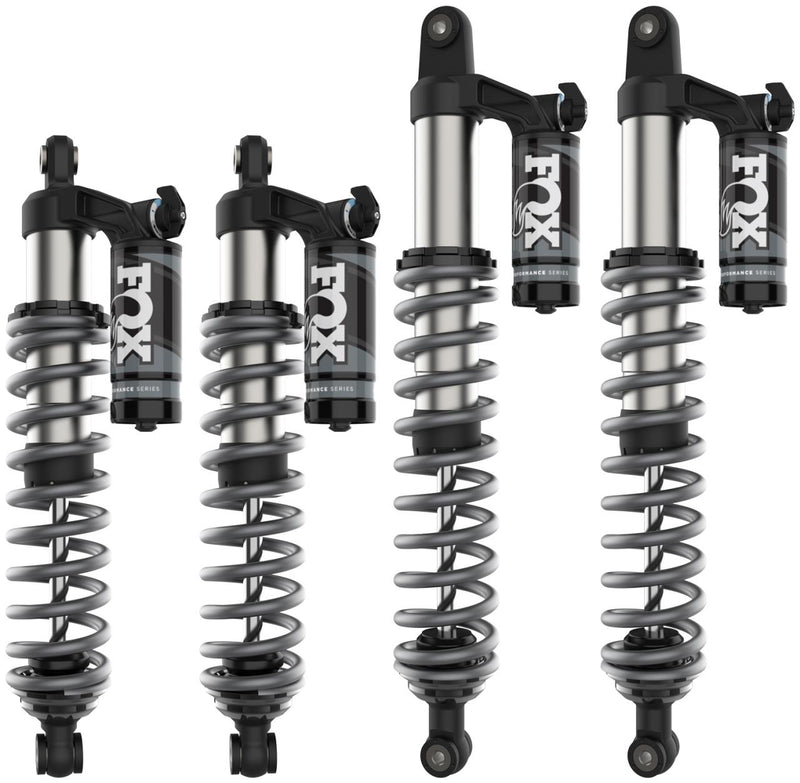

The FOX Performance Series 2.0 Podium QS3 shock kit is a direct bolt-on replacement for your stock Polaris Ranger 1500 shocks and springs. Take your Ranger from a capable utility vehicle to a full-on sport vehicle to tackle the kind of off-road terrain that will leave you grinning ear to ear.

The Podium 2.0 QS3 shocks replace your stock emulsion shocks with an internal floating piston (IFP) system housed in the piggyback reservoirs to keep the gas charge from mixing with the shock oil. This keeps the oil from effectively thinning out and losing damping control as the shocks get worked over washboards, rocks, and big dips.

The springs on the Ranger’s stock shocks are fairly soft to give you a comfortable ride. We wanted to retain that level of comfort but also keep you from bottoming out at speed over the rough stuff. Using a combination of sophisticated valving and spring rate, we were able to ride trails we normally test aggressive sport UTVs without bottoming but still enjoy a ride as smooth as stock.

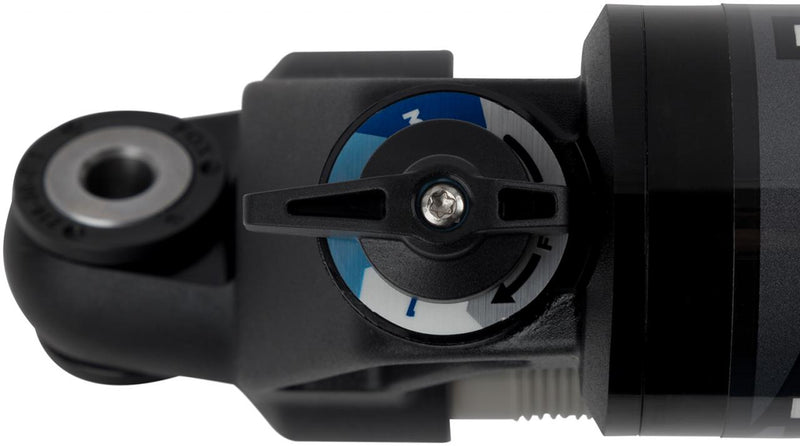

The Quick Switch 3-position compression damping adjustment allows you to quickly set your shocks to adapt to your riding conditions. Set the QS3 to setting 1 for the softest ride on smoother trails or rock crawling. Setting 2 firms things up a bit if you’re carrying extra passengers or gear. Setting 3 gives you bottom-out protection when you put your foot down and catch some air off a dune or sprint off into the desert.

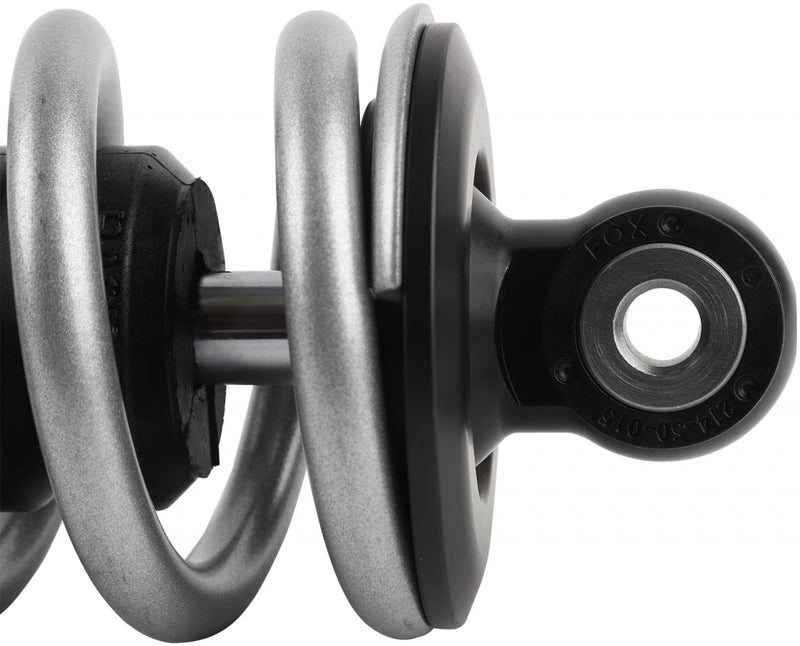

Beyond the extra capability you gain after bolting on a set of FOX Podium 2.0 QS3 shocks, you’ll have peace of mind knowing that they’re ruggedly built with hard-anodized aluminum bodies and reservoirs that resist corrosion, 5/8-inch hard chromed shafts for smooth operation and longer seal life, and are fully rebuildable if you ever damage a part or want to get them custom-valved for a specific riding application.

Front Compressed Length12.300
Front Extended Length18.820
Front Travel6.520
Rear Compressed Length15.950
Rear Extended Length23.070
Rear Travel7.120

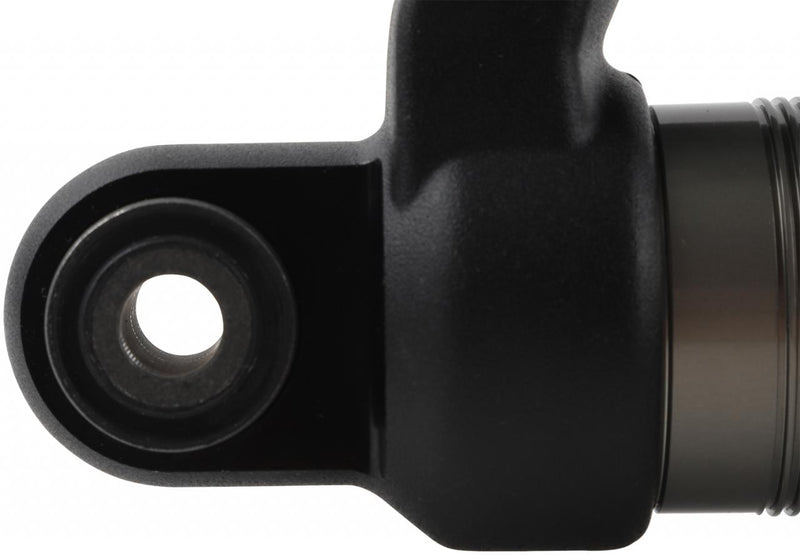

Top MountEyelet
Bottom MountEyelet
Front Extended Length18.8200
Front Compressed Length12.3000
Front Travel7.1200
Rear Extended Length18.8200
Rear Compressed Length15.9500
Rear Travel7.1200
  • 2024 RANGER XD 1500 Premium
  • 2024 RANGER XD 1500 NorthStar Edition Ultimate
  • 2024 RANGER XD 1500 NorthStar Edition Premium
  • 2024 RANGER CREW XD 1500 Premium
  • 2024 RANGER CREW XD 1500 NorthStar Edition Ultimate
  • 2024 RANGER CREW XD 1500 NorthStar Edition Premium
