Smittybilt  for UNIVERSAL /

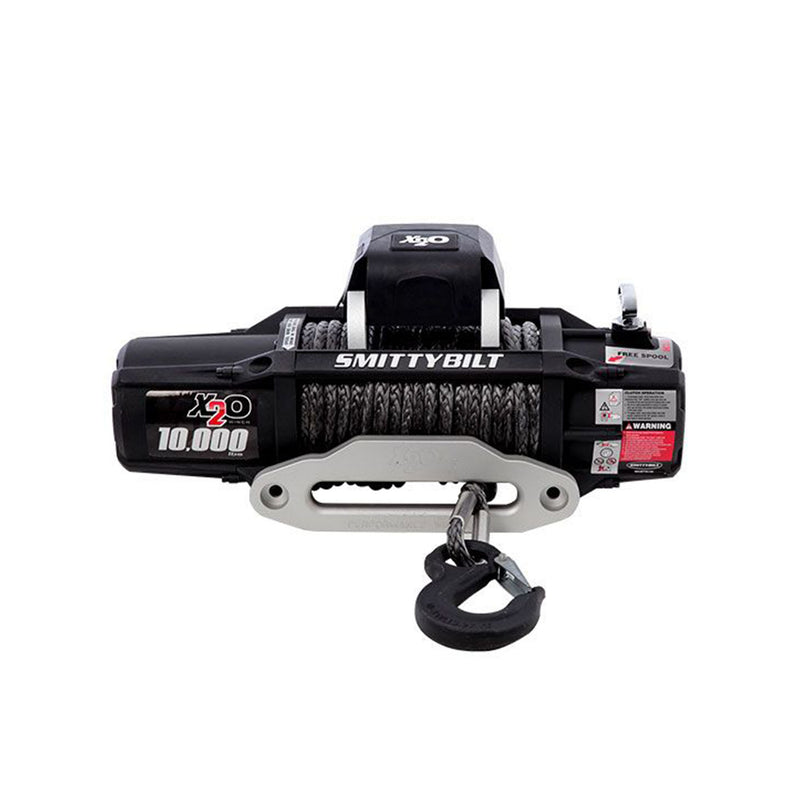

Smittybilt X2O 10K Waterproof Synthetic Rope Winch

TYPE: Winches     SKU: SMB98510
$667.99
Product Customization
Smittybilt X2O 10K Waterproof Synthetic Rope Winch
Wireless Hub Receiver for Smittybilt Winches

Wireless Hub Receiver for Smittybilt Winches

×

 The HUB Wireless Receiver -

  • 100 ft. or more wireless range
  • Rugged construction – fully molded housing offers IP68 waterproof sealing
  • Quick to install – receiver mounts to any tube or flat surface and wiring takes less than 5 minutes on most models
  • Easy to connect – iOS and Android compatible and connects via Bluetooth
  • 1 year limited warranty
  • Built-in D-plug connects to the winch just like any wired remote
  • 6’ (1.8m) long wiring harness allows the receiver to be securely mounted remotely
  • When paired with the App, this receiver allows the user to control the winch and receive battery voltage feedback.
  • Compatible with any contactor-controlled WARN truck winch, including ZEON, VR, VR EVO, and newer Heavyweight and Classic series winch models

 The HUB Wireless App -

  • Available for Apple iOS and Android
  • Download for free from Apple App and Google Play stores
  • Designed to work offline and without service using Bluetooth
  • Layout optimized for one-handed winch control
  • Real time winch feedback displayed on screen
  • Built-in help and tutorial allows user to easily connect their phone to their HUB Receiver
  • Users can pair and switch between multiple HUB Receivers

FEATURES

    •  The HUB Wireless App
      • Available for Apple iOS and Android
      • Download for free from Apple App and Google Play stores
      • Designed to work offline and without service using Bluetooth
      • Layout optimized for one-handed winch control
      • Real time winch feedback displayed on screen
      • Built-in help and tutorial allows user to easily connect their phone to their HUB Receiver
      • Users can pair and switch between multiple HUB Receivers

    FITMENT

    Warn Axon 55-S Powersport Winch
    Warn Axon 55 Powersport Winch
    Warn Axon 45-S Powersport Winch
    Warn Axon 45 Powersport Winch
    Warn Axon 35-S Powersport Winch
    Warn Axon 45RC Powersport Winch
    Warn Axon 35 Warn Powersport Winch
    Smittybilt Gen2 XRC
    Smittybilt X2O

      Compatible with any WARN AXON winch.

      MEDIA & DOCUMENTATION

      https://youtu.be/cy8cYWTPHVM

      Wireless Hub Receiver for Smittybilt Winches Wireless Hub Receiver for Smittybilt Winches
      DESCRIPTION

      The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System.


      The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation.


      The X2O also features optimized gear ratios that deliver lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope.


      And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

      FEATURES
        FEATURES
      • Waterproofing: IP68 Rating
      • Rated line pull = 10,000lbs. (4,545kgs) Single Line
      • Motor: 6.6hp Series Wound
      • Control: Remote Switch, 12 ft. (3.7m) lead
      • Gear Train: 3-Stage Planetary
      • Gear Ratio: 218:1
      • Clutch: Sliding Ring Gear
      • Brake: Automatic Out-Of-Drum
      • Drum Size: Diameter 2.5 inch
      • Cable: 98.5 feet 3/8 inch Diameter
      • Cable type: synthetic rope
      • Fairlead: Hawse
      • Remote control Included
      • Integrated Wireless Remote
      • Recommended Battery: 650CCA Minimum for Winching
      • Battery Leads: 25mm2, 72 inch(1.83m)1
      • Finish: Textured black
      • Weight: 67.0lbs. (30.4Kgs)
      • Mounting Bolt Pattern: = 10.0 inch x 4.5 inch
      • Overall Dimensions: (L x W x H) 22.3 x 5.4 x 9.4
        SPECS
      • Smittybilt | Part Number: S/B98510
      • Fairlead:Hawse
      • Line Pull:10000
      • Remote Control:12 Feet Lead
      • Line Type:Synthetic Rope
      PRODUCT INSTALLATION
      Installation Video
      Smittybilt X2O 10K Waterproof Synthetic Rope Winch Product Manual
