Thumper Fab  POLARIS / RANGER MID-SIZE

Ranger SP 570 Mid-Size Rear Winch Bumper

TYPE: Bumpers     SKU: TF100602-X

Designed to fit your Polaris Ranger SP 570 Midsize like a glove, and dramatically change the look and purpose by giving you the strongest winch ready SXS REAR BUMPER for the POLARIS Ranger mid-size on the market!

(read more)
$449.00
$449.00
Product Customization
Color
Light Kit
TF 3/4" Extreme Shackles (pair)

Thumper Fab ¾” Extreme Shackle (pair) with 7/8” Pin

×
ADD ON's (Select Multiple)

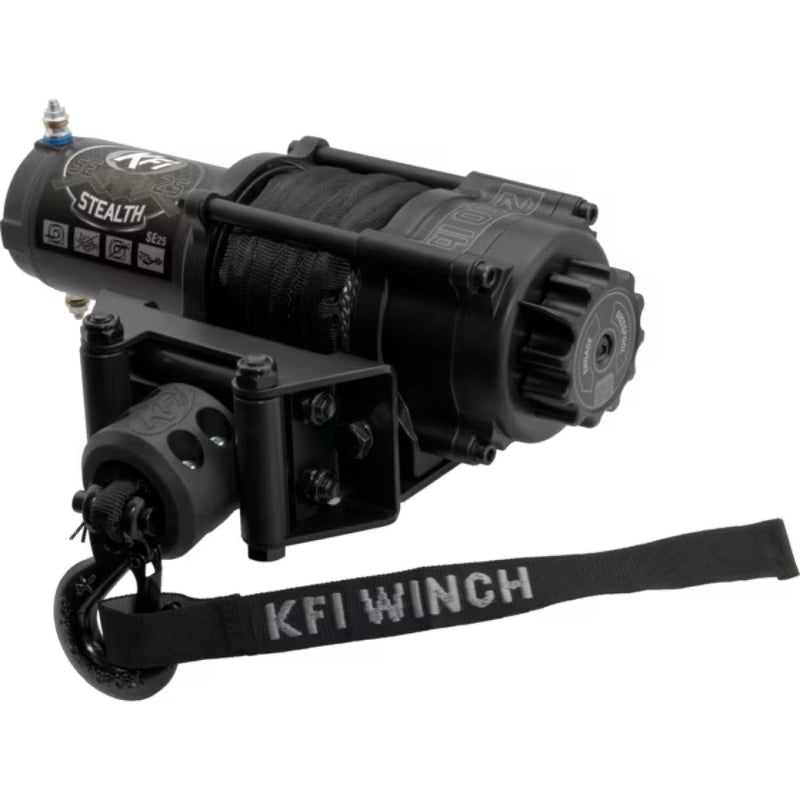

KFI SE25 Stealth Winch

×

DESCRIPTION

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have.

Equip your ATV, UTV or SxS with a KFI SE25 Stealth Winch and feel confident you can pull yourself out of any situation.

This 2500lb Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch.

It is also backed by a KFI 1-Year Limited Warranty.  The KFI SE25 Stealth Winch comes with everything you need other than an ATV model specific winch mount.

Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

FEATURES

  • 50' Synthetic Cable with 5' protective sheath and end loop

  • Take control of your winch with the included Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.

  • The all New Heavy Duty Electric Contactor (ATV-CONT) protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.

  • Included is our KFI Split Cable Hook Stopper with the following benefits:

    • Eliminates wear and tear on your rollers from the hook with can cause cable wear.
    • Eliminates hook clatter from going down the trail.
    • Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
    • Keeps tension on the hook to eliminate the cable becoming loose.
    • Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
    • Looks great.

SPECIFICATIONS

Model SE35 ATV Series
Rated Line Pull 2500 lbs.
Motor 12V DC, 1.5 hp Permanent Magnet
Gear Ratio 171:1
Gear/Transmission All-metal Planetary Gear Drive
Brake Dynamic and Mechanical
Clutch (free spooling) All Metal Cam Activated Freespool
Drum Size 1.5" (D) x 3.15" (L)
Synthetic Cable 3/16" (D) x 50' (L) Smoke color
Fairlead Multi-directional POM Roller
Control Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch
Winch Dimensions 12.67" L x 4.06" D x 4.2" H
Mount Plate Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern 3.00" x 4.875" (4-Hole)
Recommended Battery 12 Amp/hour minimum
Warranty Limited 1 Year
Winch Weight 22.7 lbs. (complete kit)



Thumper Fab - KFI SE25 Stealth Winch
Thumper Fab - KFI SE25 Stealth Winch

Thumper Fab - KFI SE25 Stealth Winch

KFI Wireless Remote Control Kit

×

The KFI Winch Wireless Remote Control Kit ( KFI-WRC ) integrates into existing KFI Winch wiring configurations that utilize a contractor block to replace the existing wired remote.

The KFI Winch Wireless Remote Kit includes; a wireless remote, receiver with wiring harness, holster, mounting hardware, wire tap and other accessories.

Universal Fairlead Winch Plate

×

DESCRIPTION

Thumper Fabs Universal Fairlead Winch Plate will fit our Thumper Fab bumpers, front or rear. We developed a winch plate to better fit the Warn Axon 3500-S Winch that is extremely popular on our bumpers.

This winch plate mounts the Warn Axon 3500-S to any Thumper Fab Bumper. 3.0" x 4.87" Bolt Pattern for narrow spool ATV Winch

(If you order the Ranger or Defender Rear Bumper with the Warn Axon 3500-S, this plate is required.)

FITMENT
DESCRIPTION

Designed to fit your Polaris Ranger SP 570 Midsize like a glove, and dramatically change the look and purpose by giving you the strongest winch ready SXS REAR BUMPER for the POLARIS Ranger mid-size on the market! Rated for a 2,500 LB winch!! The Thumper Bumper has become known for its strength, design, and high-quality welds. We don't hide our welds! This is quality and strength you can see!

This bumper will not fit the Ranger 500 and older model 570. Need a bumper for your Ranger Non-SP 570 or 500? Be sure to checkout TF100601 for the Ranger 500-570 design!

FEATURES

Standard Benefits
  • CNC Laser Cut & Formed US Steel for precision fitment
  • Extreme Duty 3 stage powder coating (when color is selected)
  • Rated and ready for up to a 2,500 LB winch
  • 3” Quad Row LED Cube Light Option with Wire Harness
  • Light cover & skid plate can be color customized
  • Made in the USA

Bragging Benefits
  • Bring the beef with this beefy bumper
  • Back it up when you need it
  • Look good while doing it with strength and style

Specs
  • Material: American Made Steel
  • Winch Mount Area: 3.0” x 4.87” Bolt Pattern for UTV Winches
  • Light Options: 3” Cube Lights

PRODUCT FITMENT GUIDE

  • 2022-2023 RANGER SP 570 Premium
  • 2022-2023 RANGER SP 570
  • 2022-2023 RANGER CREW SP 570 Premium
  • 2022-2023 RANGER CREW SP 570
  • 2022 RANGER SP 570 NorthStar Edition
  • 2022 RANGER CREW SP 570 NorthStar Edition
  • 2022 INTL RANGER 570 EPS + Nordic Pro
  • CMV
  • 2022 Pro XD Mid-Size Gas Crew
  • 2022 Pro XD Mid-Size Gas
PRODUCT INSTALLATION
Polaris Ranger SP 570 Mid-Size Rear Winch Bumper Product Manual
