KFI  for CAN-AM, POLARIS, HONDA, TRACKER, YAMAHA / UNIVERSAL

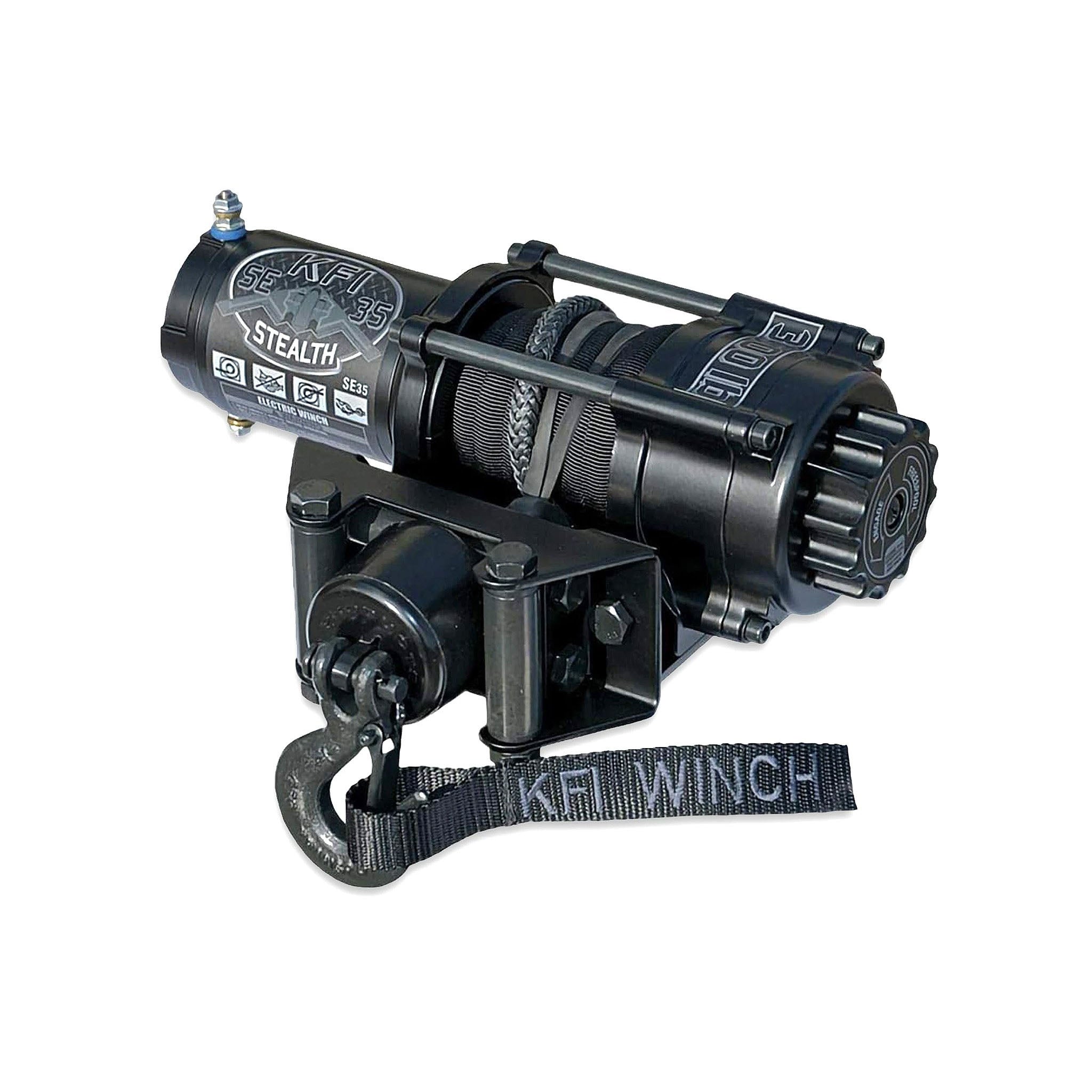

SE35 Stealth Winch

TYPE: Winches     SKU: 10-0202
Regular price $366.00
Regular price $366.00 Sale price $366.00 Compare at $366.00
Product Customization
Model

Wireless Remote for Winches

KFI Wireless Remote Control Kit

×
KFI Wireless Remote Control Kit

The KFI Winch Wireless Remote Control Kit ( KFI-WRC ) integrates into existing KFI Winch wiring configurations that utilize a contractor block to replace the existing wired remote.

The KFI Winch Wireless Remote Kit includes; a wireless remote, receiver with wiring harness, holster, mounting hardware, wire tap and other accessories.

DESCRIPTION

DESCRIPTION

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have.

Equip your ATV, UTV or SxS with a KFI SE35 Stealth Winch and feel confident you can pull yourself out of any situation.

This 3500lb Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch.

It is also backed by a KFI 1-Year Limited Warranty.  The KFI SE35 Stealth Winch comes with everything you need other than an ATV model specific winch mount.

Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

FEATURES

  • 50' Synthetic Cable with 5' protective sheath and end loop

  • Take control of your winch with the included Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.

  • Also included is a Handheld 14' Corded Remote for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring a system so that you can store your remote  when not in use.

  • The all new Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.

  • Included is our KFI Split Cable Hook Stopper with the following benefits:

    • Eliminates wear and tear on your rollers from the hook with can cause cable wear.
    • Eliminates hook clatter from going down the trail.
    • Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
    • Keeps tension on the hook to eliminate the cable becoming loose.
    • Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
    • Looks great.

SPECIFICATIONS

Model SE35 ATV Series
Rated Line Pull 3500 lbs.
Motor 12V DC, 1.5 hp Permanent Magnet
Gear Ratio 171:1
Gear/Transmission All-metal Planetary Gear Drive
Brake Dynamic and Mechanical
Clutch (free spooling) All Metal Cam Activated Freespool
Drum Size 1.5" (D) x 3.15" (L)
Synthetic Cable 3/16" (D) x 50' (L) Smoke color
Fairlead Multi-directional POM Roller
Control Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch
Winch Dimensions 12.97" L x 4.06" D x 4.2" H
Mount Plate Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern 3.00" x 4.875" (4-Hole)
Recommended Battery 12 Amp/hour minimum
Warranty Limited 1 Year
Winch Weight 24.8 lbs. (complete kit)
